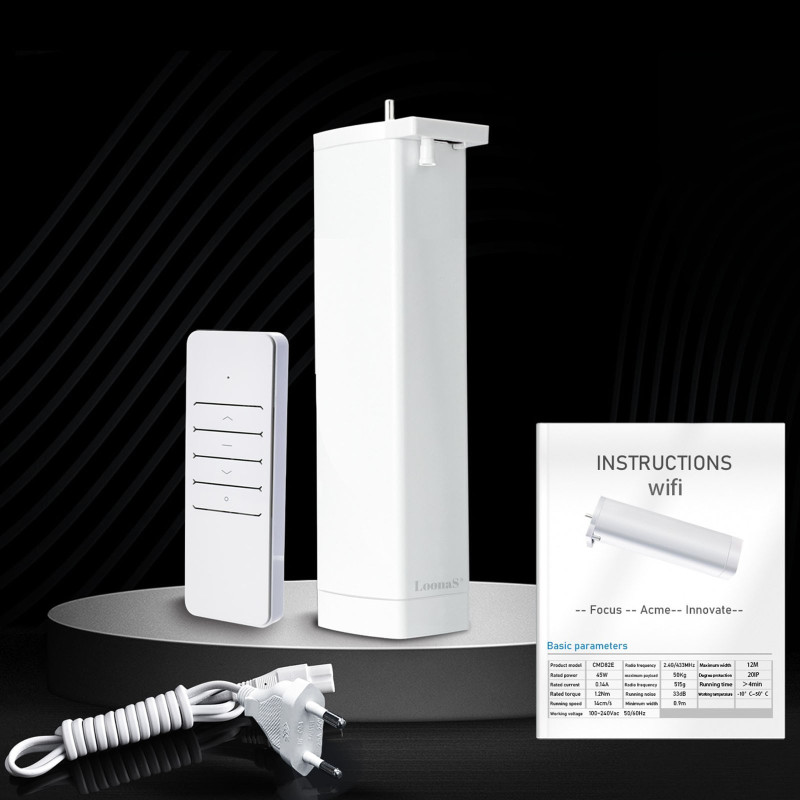

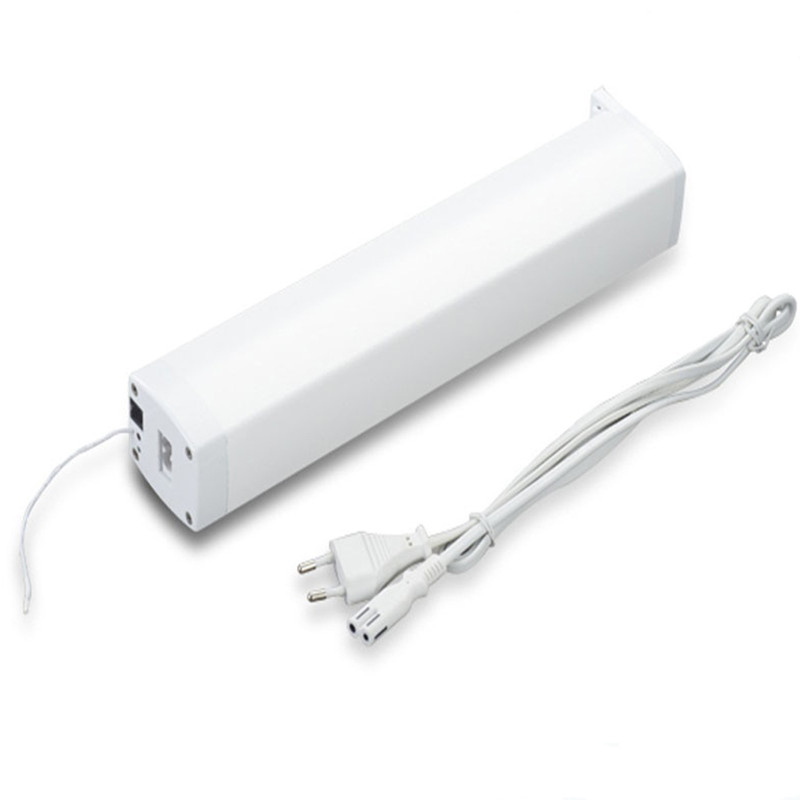

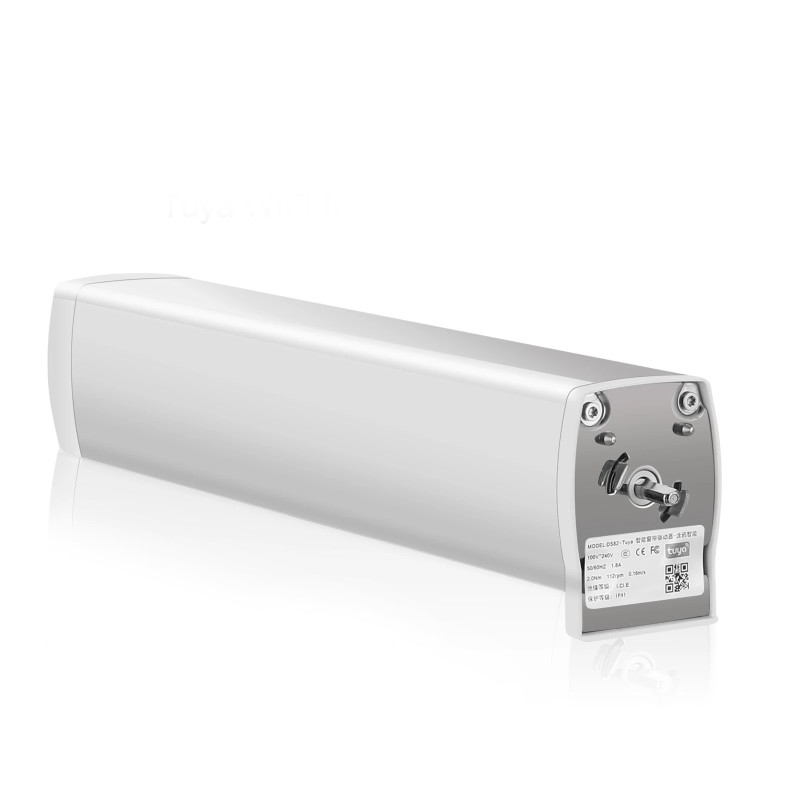

Tuya WiFi motor for electric curtain rails + remote control

New smaller 3rd generation model

The Tuya WiFi motor in a set with a remote control for automatic curtains powered by the network is the perfect solution for your bedroom, living room and children's room. Thanks to this motor, in combination with a dedicated rail, you can open and cover the windows with your traditional fabric curtains.

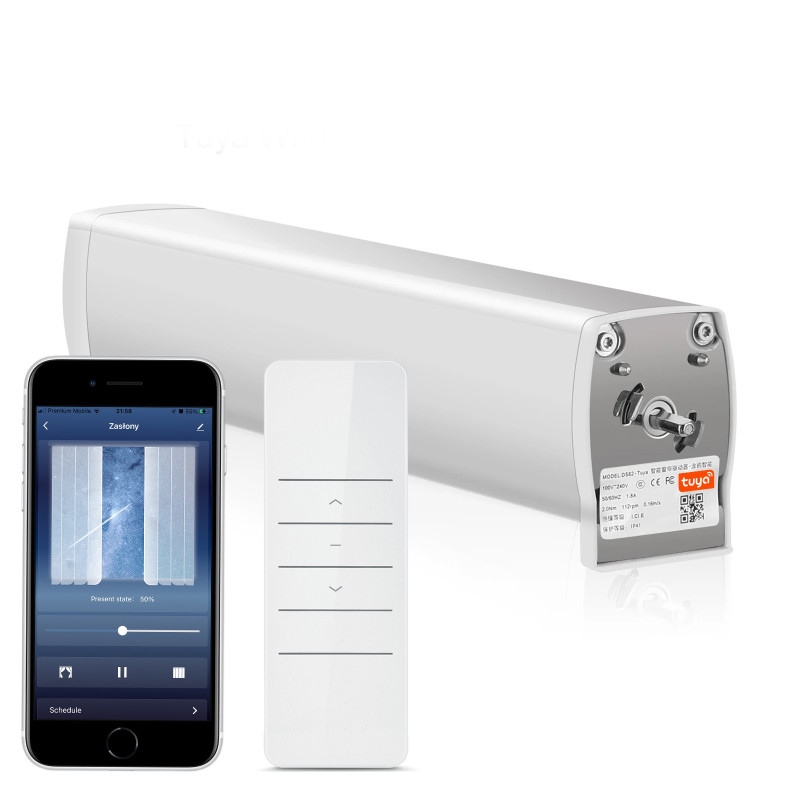

You can open the curtains at any time and degree. Control the amount of sunlight in your home comfortably from your armchair or sofa using your phone or remote control (included).

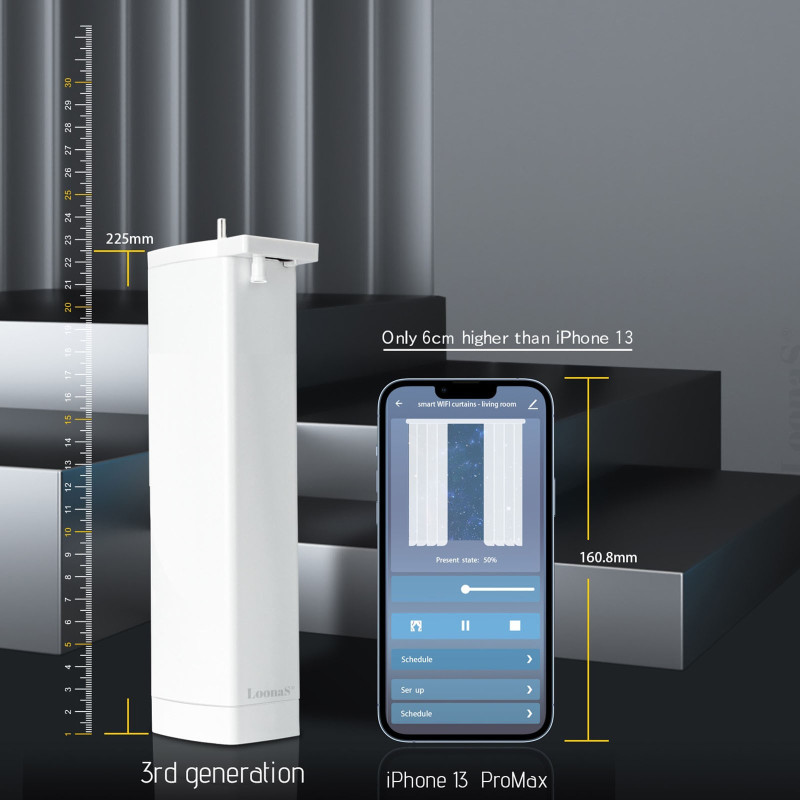

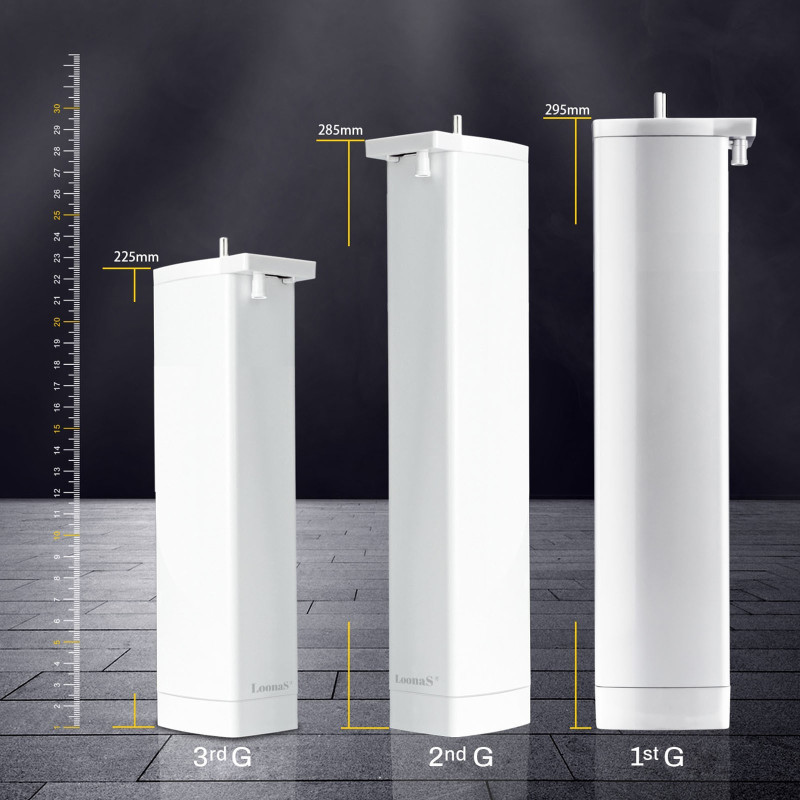

Third generation, height only 22.5 cm

No gateway required, works directly via WiFi network with Tuya Cloud.

The most important features

• Quiet operation
• Automatic calibration - the motor automatically remembers the 0 and 100% window covering positions
• Percentage occlusion
• Remote control control

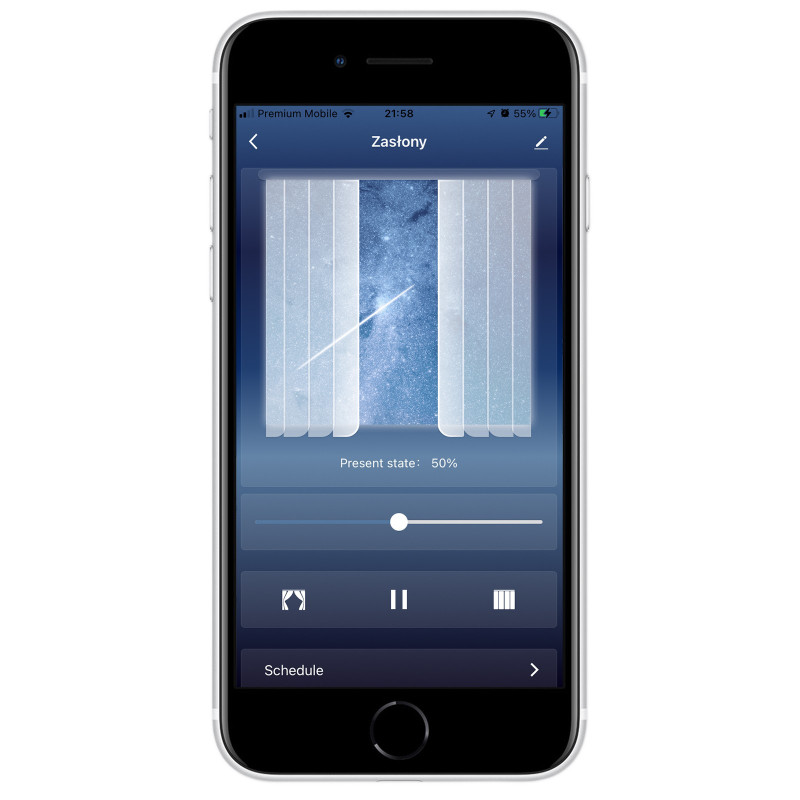

• App control
• Schedules for opening and closing the window at a specific time
• Small size, height only 22.5 cm - third generation model

Specification

• Powered: AC 110 - 240V 50/60Hz
• Dimensions: 48x70x225mm
• Weight: 740g
• temp. working: -10℃~+50℃
• Operating humidity : 10 - 90% RH, non-condensing
• Communication protocol : WiFi 2.4
• Power: 45 W, motor force 1.2 Nm
• Speed: 14cm/sec

Installation

To add a motor to the Tuya application, follow the instructions:

1. Press the + icon and select Add Device
2. From the device groups, select small devices
3. From the devices in the group, select Curtains (WiFi)

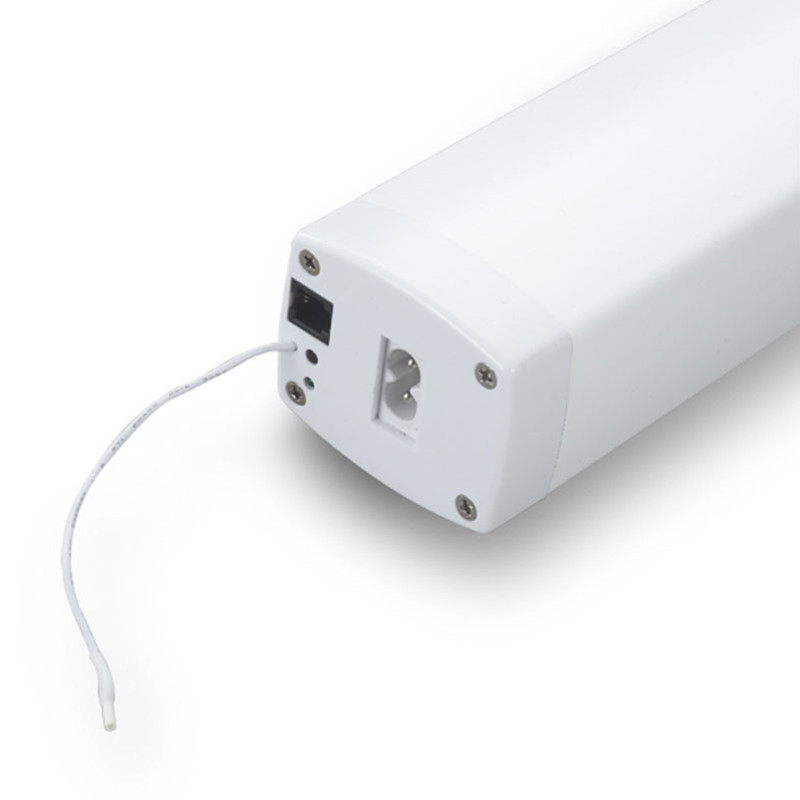

4. Put the motor into pairing mode by pressing the reset button 3 times , then immediately press and hold for a few seconds until the LED flashes rapidly.
5. Next, follow the instructions on the phone screen.
