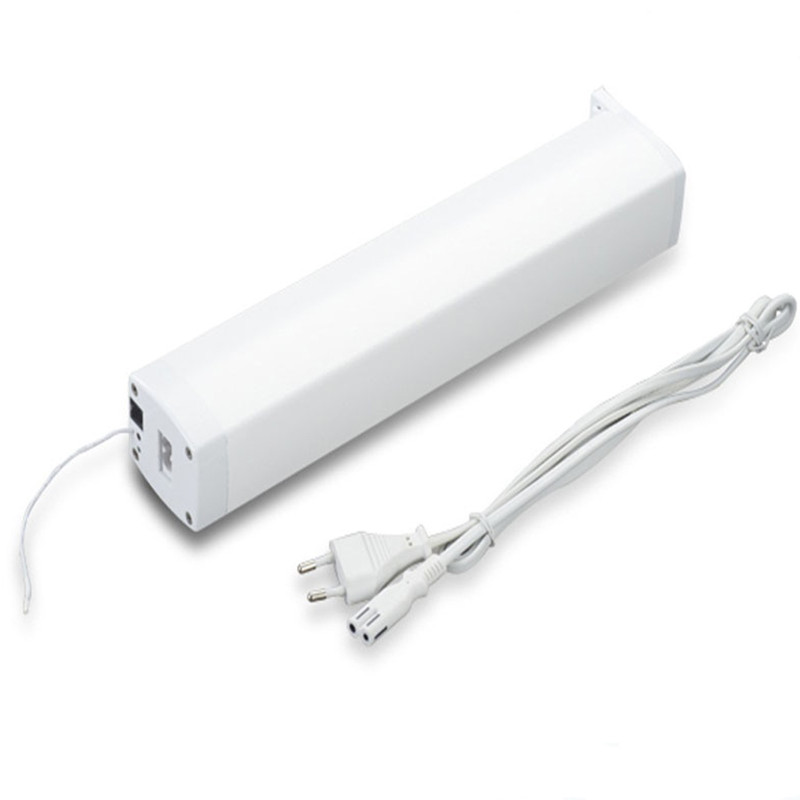

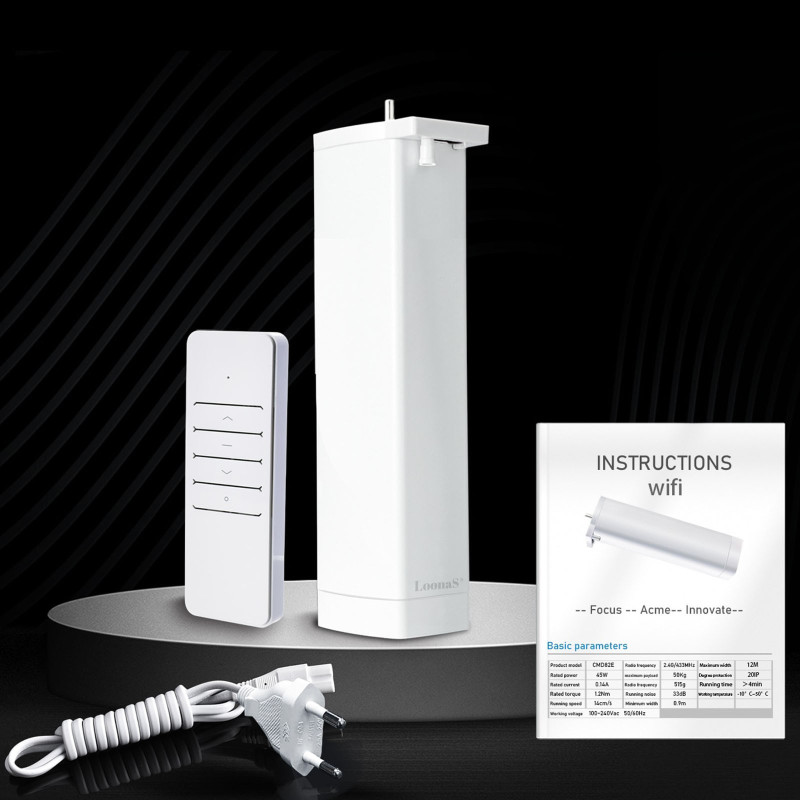

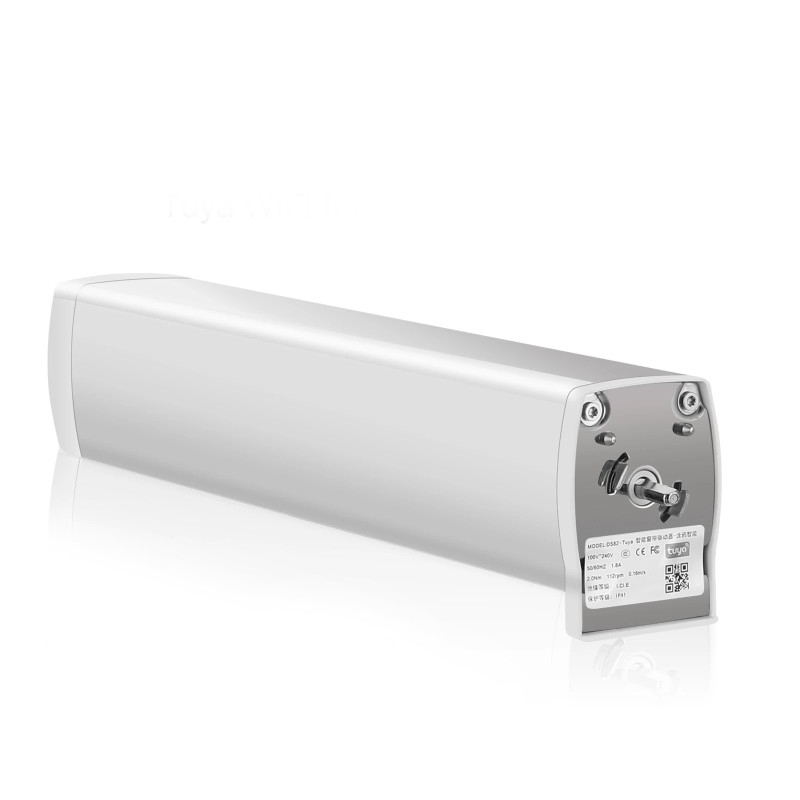

Ewelink WiFi motor for electric curtain rods + remote control

New smaller 3rd generation model

The Ewelink WiFi motor complete with remote control for automatic curtains powered by the mains is the perfect solution for your bedroom, living room and children's room. With this motor, combined with a dedicated rail, you can open and close windows with your traditional fabric curtains.

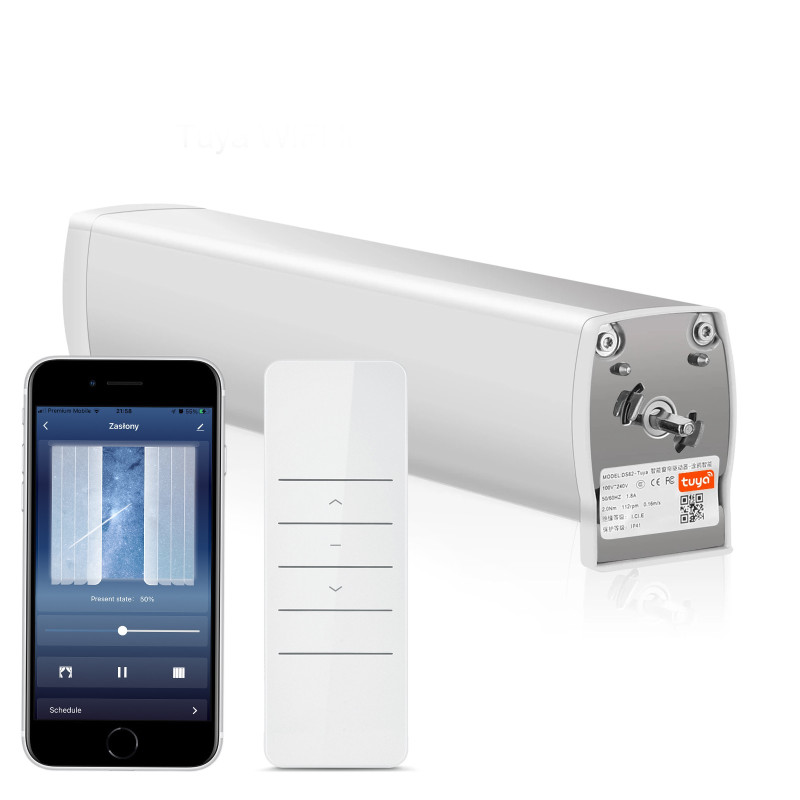

You can open the curtains at any time and to any degree. Adjust the degree of sunlight in your home comfortably from your armchair or couch using your phone or remote control (included).

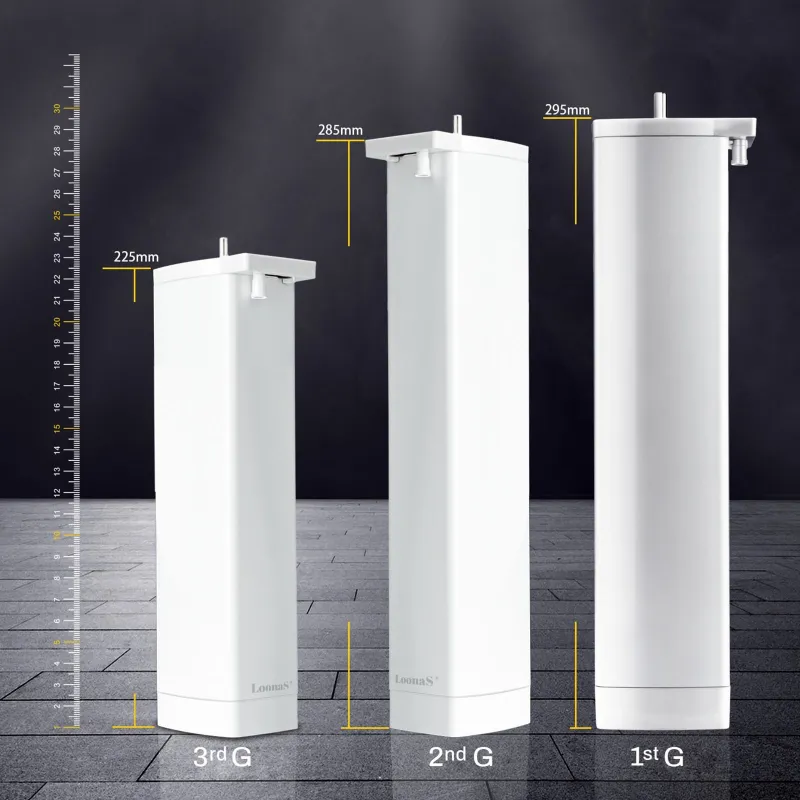

Third generation, height of only 22.5 cm

No gateway required, works directly over WiFi with Ewelink cloud.

Key features

• Quiet operation
• Automatic calibration - the motor automatically remembers the positions of 0 and 100% window
• covering
• Percentage
• covering
• Control by remote control

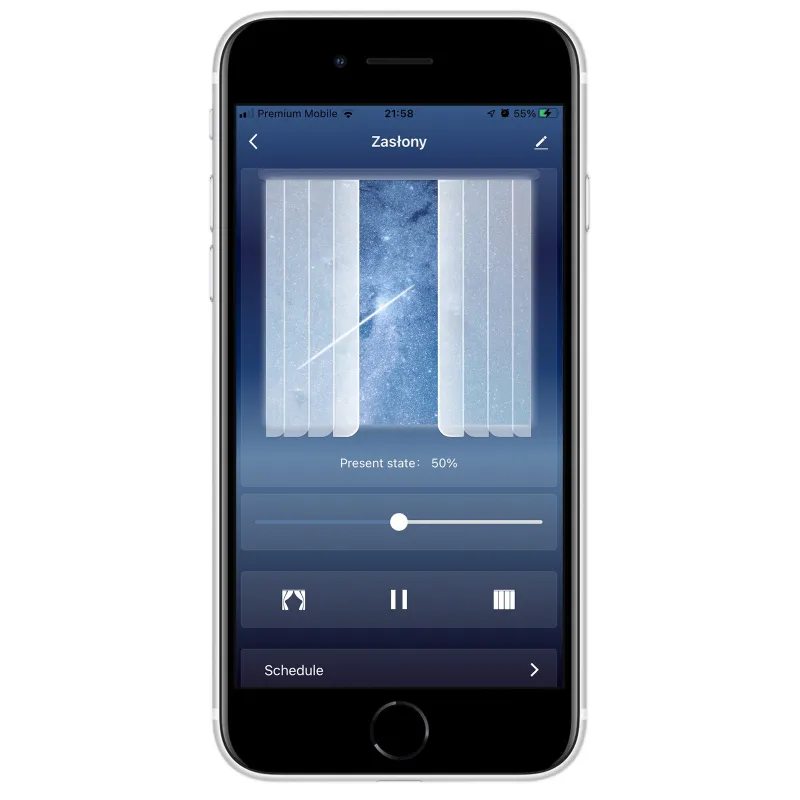

• Control from the app
• Schedules to cover and uncover the window at a specific time

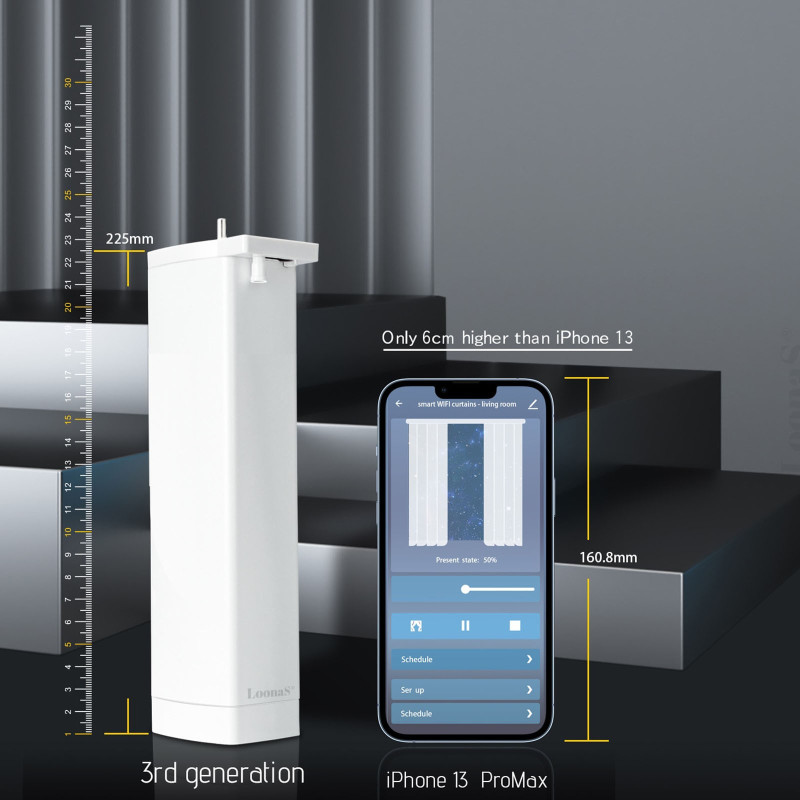

• Small size, height only 22.5 cm - third generation model

Specifications

• Powered: AC 110 - 240 V 50/60 Hz
• Dimensions: 48 x 70 x 225 mm
• Weight: 740 g
• Operating temp:
• -10℃~+50℃
• Operating humidity : 10 - 90% RH, non-condensing
• Communicationprotocol :
• WiFi 2.4
• Power: 45 W, motor force: 1.2 Nm
• Speed: 14 cm/sec
• .

Installation

To add a motor to the Ewelink app, put the motor into pairing mode by pressing the reset button 3 times, the LED will blink rapidly, and then follow the instructions in the app.
