Aqara Air quality sensor TVOC EU ZigBee

TVOC Aqara ZigBee 3.0 Air Quality Monitor

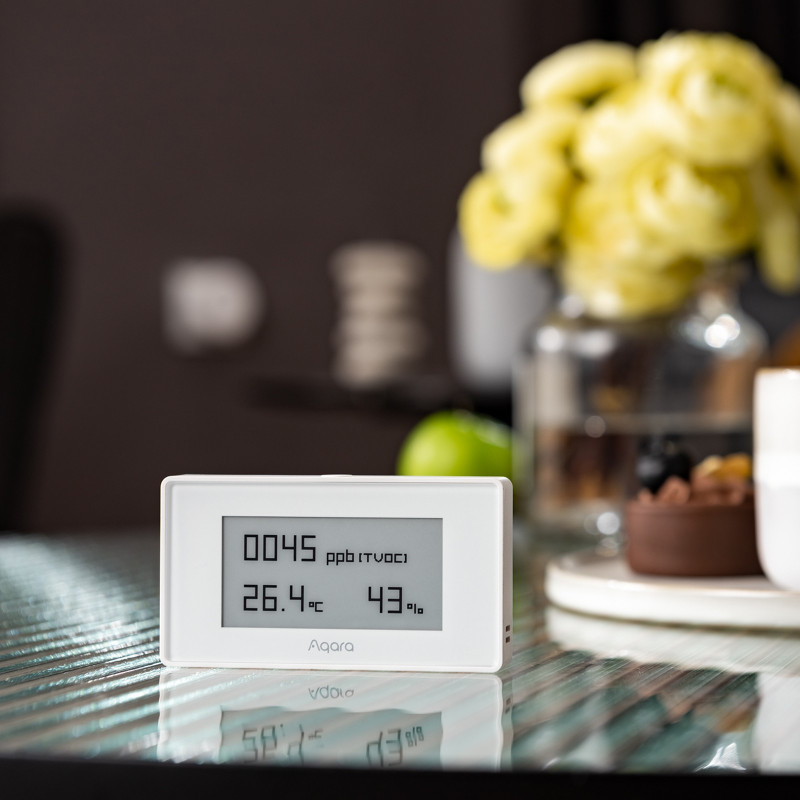

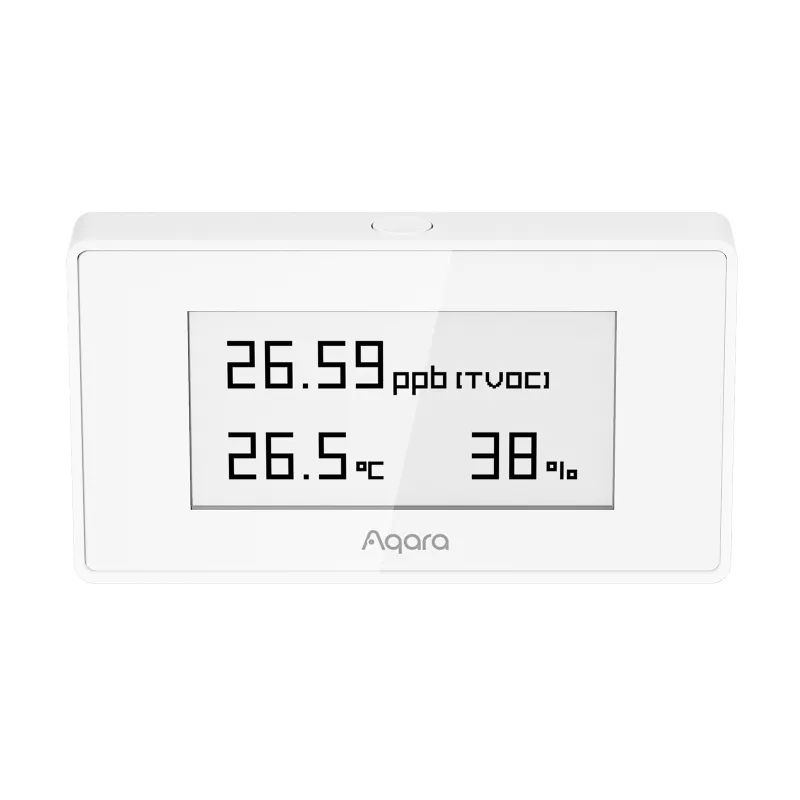

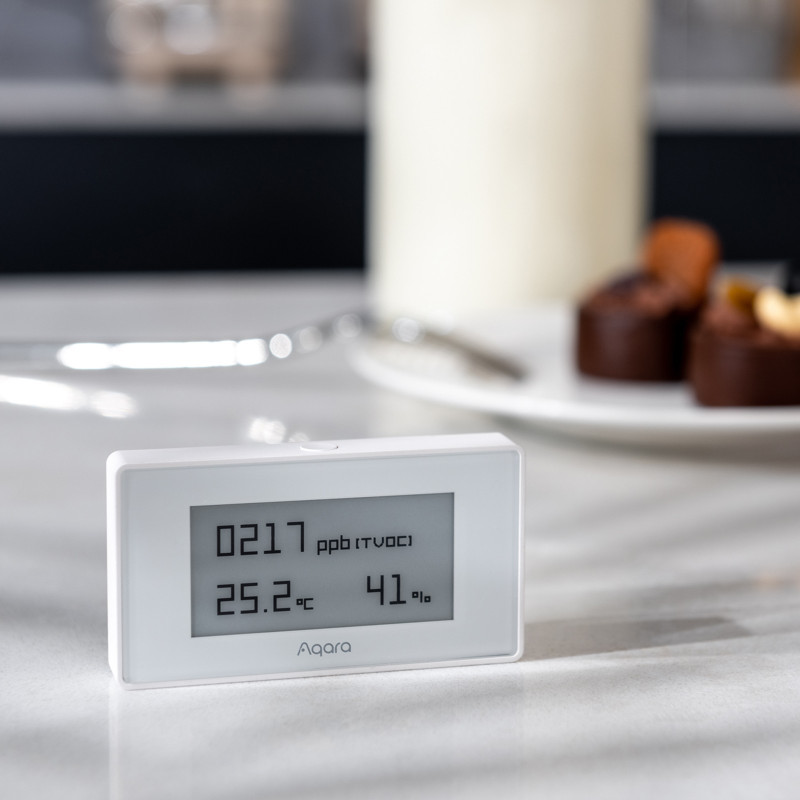

The TVOC Air Quality Monitor can detect the concentration and level of TVOC in the air, as well as temperature and humidity. When connected to a concentrator, it can use changes in TVOC concentration or level, temperature and humidity as automation conditions, cooperate with other smart home devices to implement various smart scenarios, and send notifications to the mobile phone.

The sensor works with Apple HomeKit, Aqara Home, Alexa, Google Home

The most important information

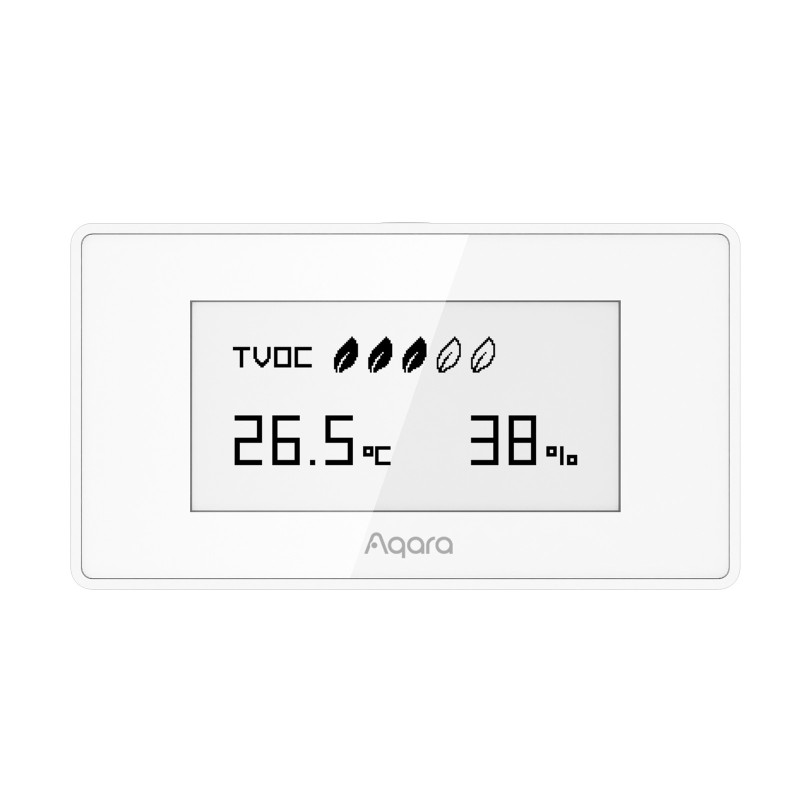

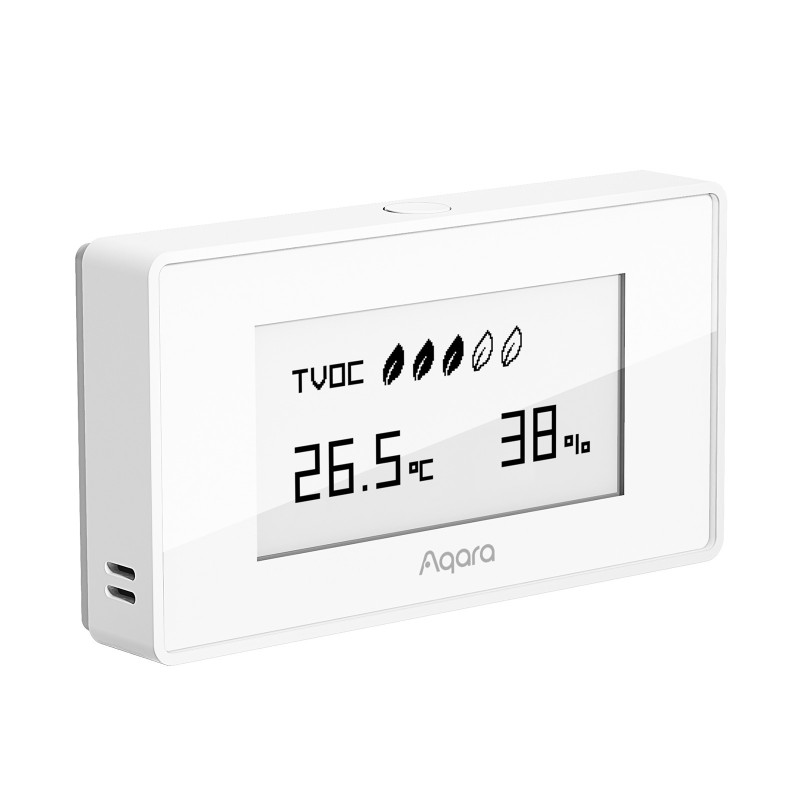

• TVOC Detection: Detects TVOC and displays TVOC level with green leaves.
• Temperature Detection: Detects temperature accurately and supports the automation of temperature related settings.
• Humidity detection: Detects the exact humidity and supports the automation of humidity related settings.

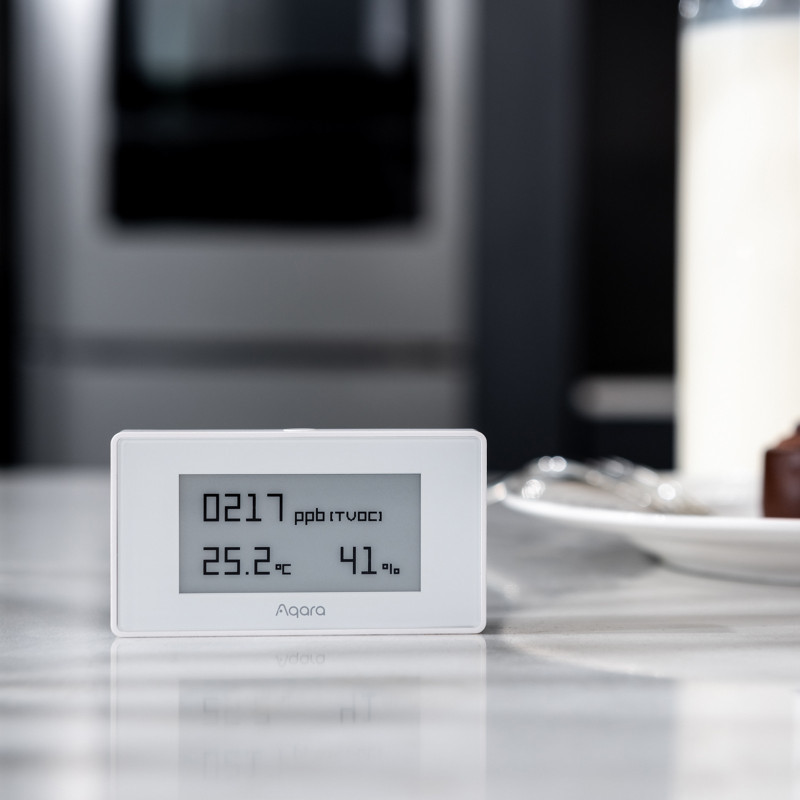

• Display screen: Equipped with dot matrix E-ink screen which is similar to paper and protects eyes.
• Smart Automation: With Zigbee 3.0 protocol, can interoperate with other devices via Hub and Automation.

Technical data

• Brand: Aqara
• Name: TVOC Air Quality Monitor
• Model: AAQS-S01

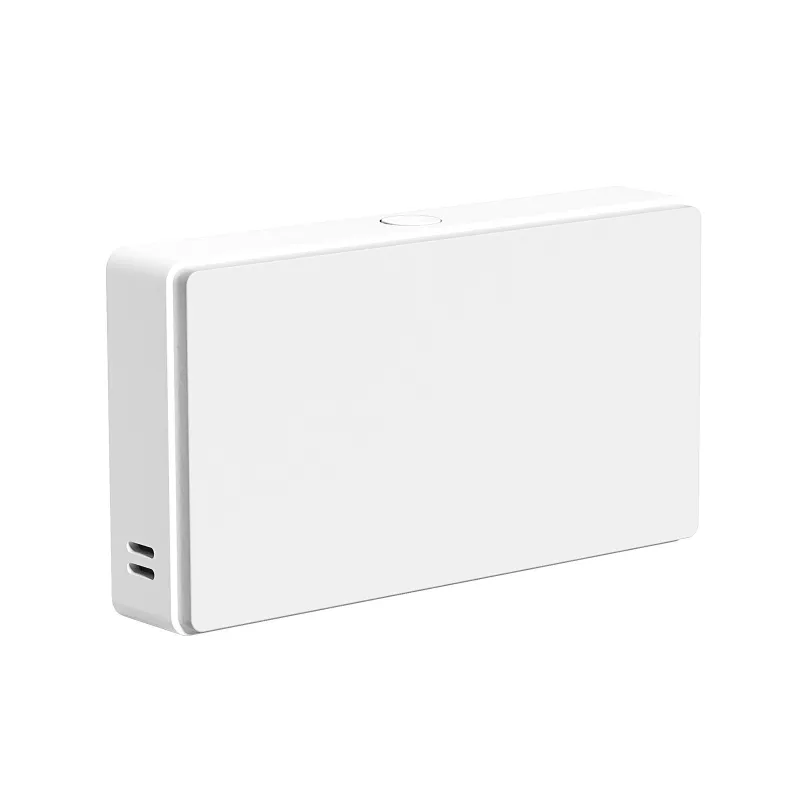

• Dimensions: 41.6 × 76.0 × 14 mm
• White color
• Material: PC

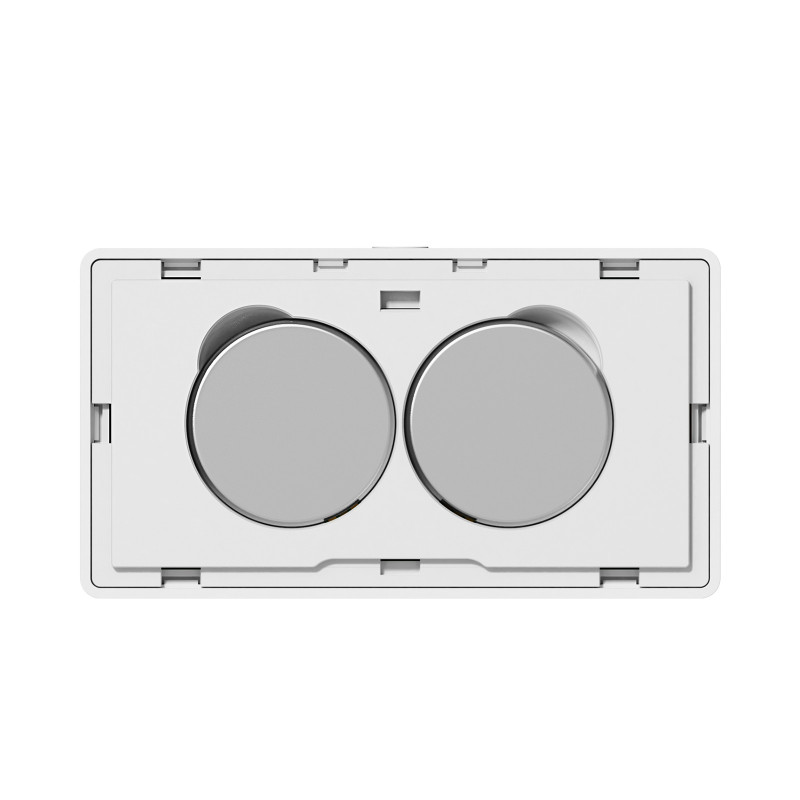

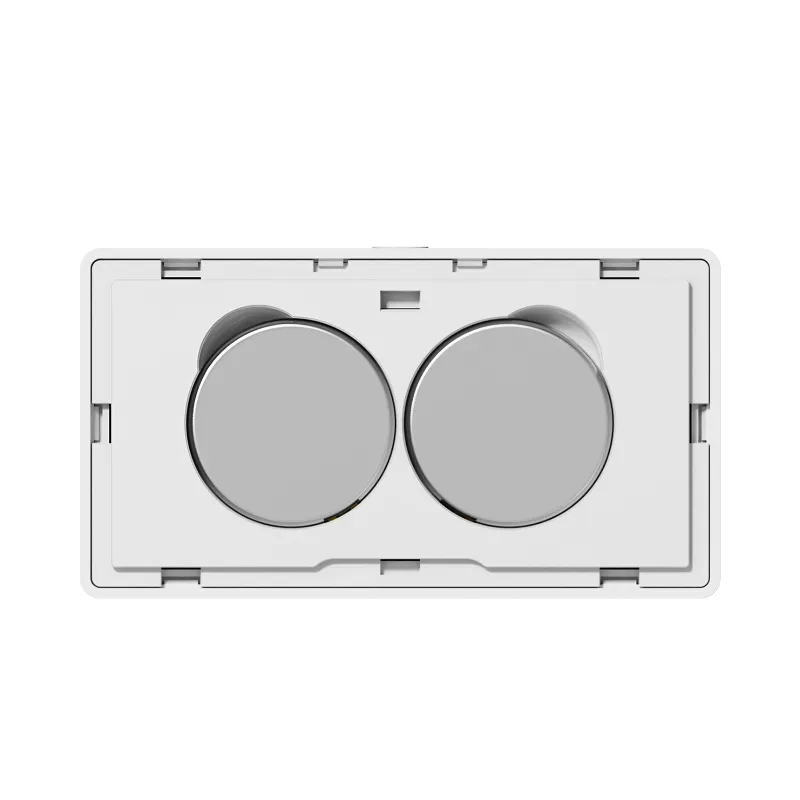

• Battery: CR2450 × 2
• Battery capacity: 1300mAh
• Battery life: ≥1 year.
• Net weight: 56.5g
• Battery voltage: About 3.0V
• Protocol: Zigbee 3.0
• Standard: IEEE 802.15.4
• Frequency: 2.4GHz （2400 ～ 2483.5MHz）
• Transmit power: 10dBm
• Receiving sensitivity: -100dBm
• Communication distance: 30m (indoor)
• Heartbeat: Once / 55min
• Working temperature: 0 ° C ~ + 50 ° C
• Working humidity: 0 ~ 95% RH, non-condensing
• TVOC Detection range: 0 ~ 25mg / m³
• TVOC resolution: 1ppb or 0.01mg / m³
• TVOC accuracy: 20% (25 ° C, 50% RH)
• Temperature Detection range: -40 ~ 85 ° C
• Temperature resolution: 0.1 ° C
• Temperature accuracy: ± 0.2 ° C
• Humidity Detection range: 0 ~ 100% RH
• Humidity resolution: 1%
• Humidity Accuracy: ± 2% RH
• Screen Dimension: 2.13 inch
• Screen resolution: 250 × 122
