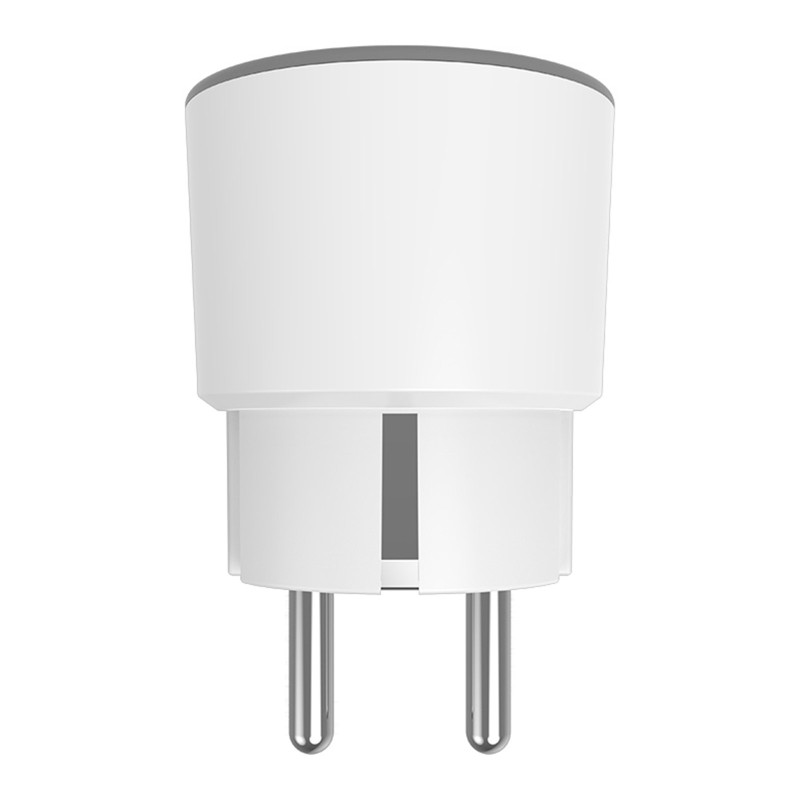

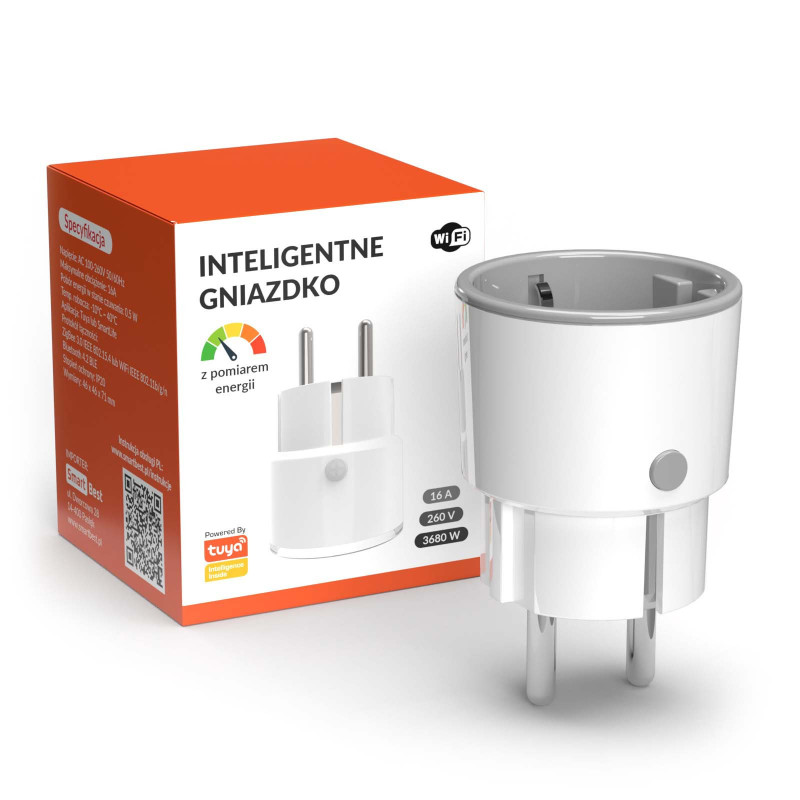

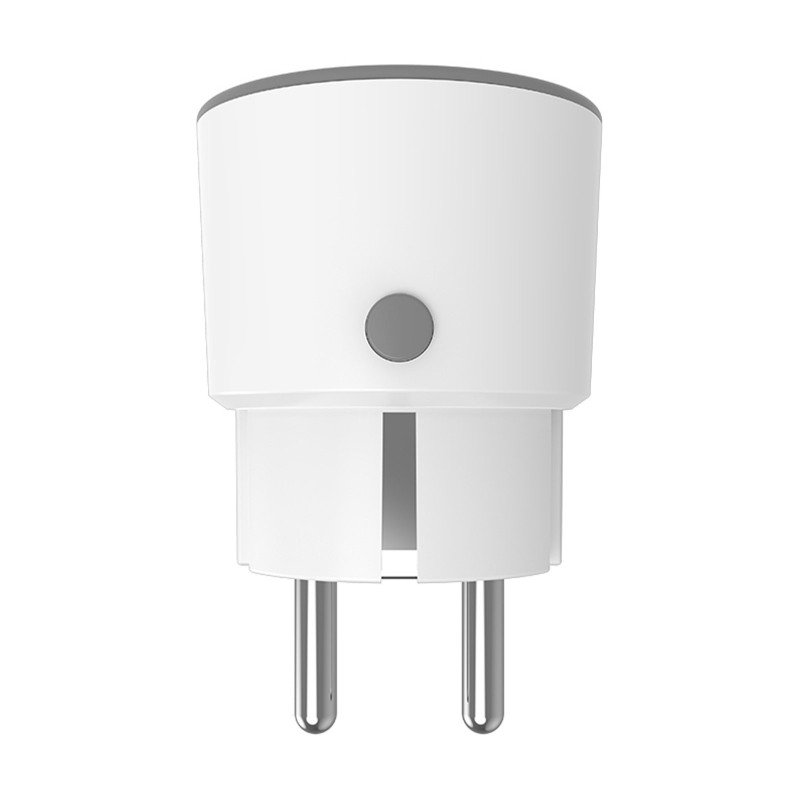

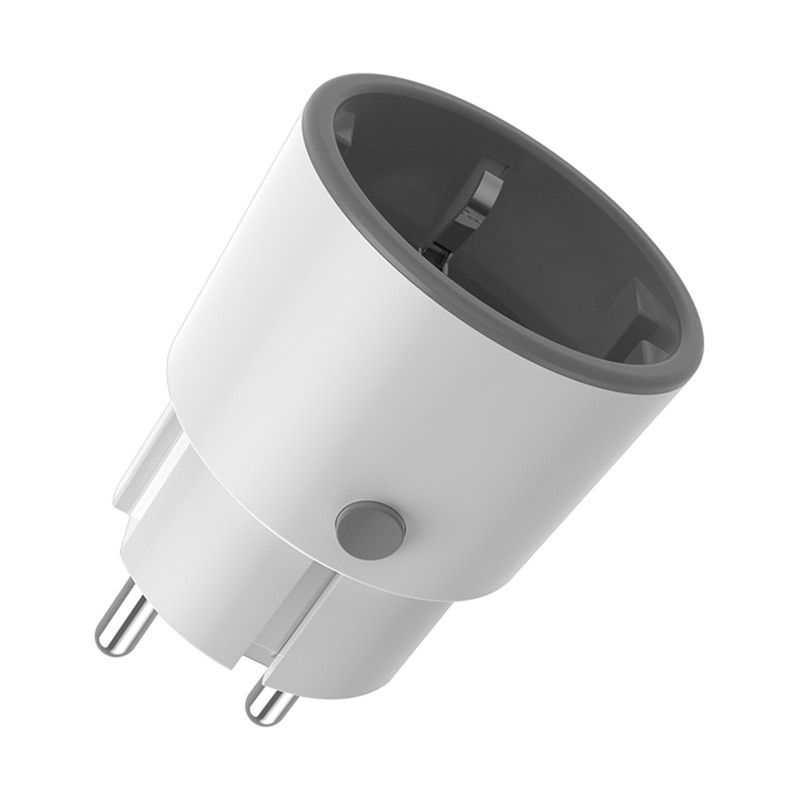

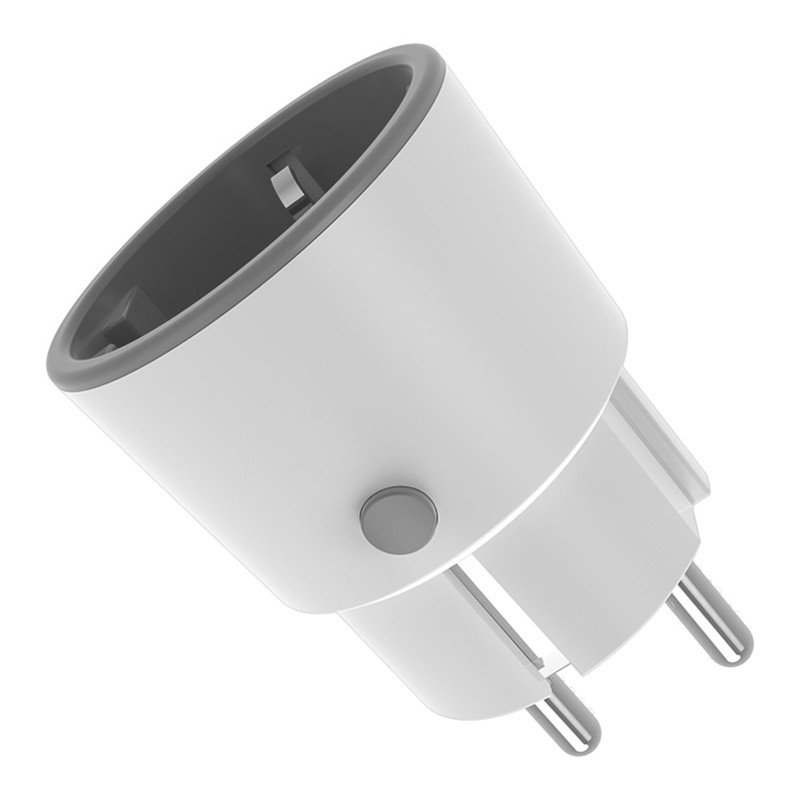

TUYA 260V 3680W 16A WiFi socket with current measurement

TUYA smart WiFi + Bluetooth outlet, controlling any electrical device up to 3680W 16A with power and voltage measurement. TUYA or SmartLife app . New version up to 260V under photovoltaics.

Key features

Control the operation of equipment from anywhere in the world

The socket has status control after power loss: on, off, restore the state before power loss

Precise measurement of power consumption with consumption statistics over time

Manual button control

Possibility of automation based on many parameters

Fast response thanks to WiFi technology

Possibility to set schedules and timers

Free Tuya Smart or Smartlife app for Android and iOS

Easy installation and operation

Cooperation with Google Home, Amazon Alexa system. Control your outlet by voice!

2.4 GHz WiFi protocol for communication and Bluetooth LE for configuration

Maximum power: 3680W

Maximum grid voltage: 260V (outlet version recommended for installation of photovoltaic panels)

Specifications

• Power supply: 85-260VAC, 50/60Hz
• Maximum power: 3680W
• Maximum current: 16A
• Standby power consumption:
• < 0.5W
• Communication protocol:
• WiFi + Bluetooth
• Operating temperatures:
• -20 ~ 70°C
• Housing: non-flammable PC
• Dimensions:
• 46 x 46 x 71mm
• Color: White, gray border

The socket allows you to change the settings of the notification LED:

• LED
• off
• illuminates when on
• illuminates when off (signaling the location of the outlet)
• Power-On State - relay status after a power failure

The outlet has the ability to set the state of the relay after a power outage (temporary power failure):

Three modes to choose from:

• relay
• off
• relay on
• the previous state before the power outage

This is a very useful feature that can be used depending on where you apply the module.

Schedules and Timers

Do you want to fully automate the operation of your electrical devices and not wonder if you have turned something on or off? Set a schedule for your outlet!

You can choose from:

• Countdown - one-time switch off after a set time
• Schedule - switch on
• and off only at specific times of selected days.
• Circulate - on/off loop operation
• .
• For example: on for 1 minute, off for 2 minutes - in a continuous loop, at specific times and days.
• Random - random on and off
• .
• The on and off time is generated randomly. Used, for example, to simulate your presence at home during a vacation.
