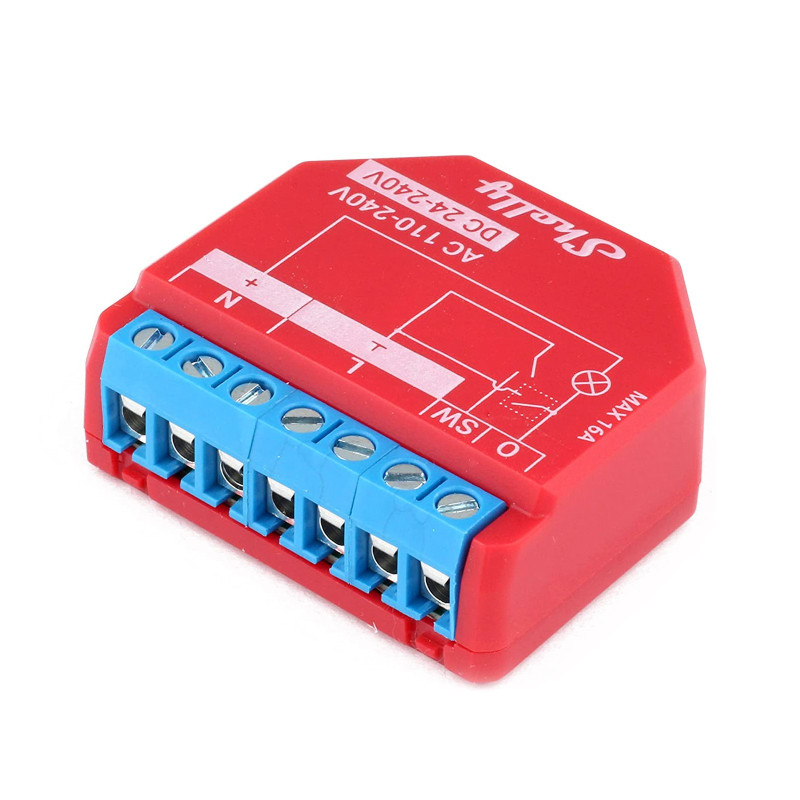

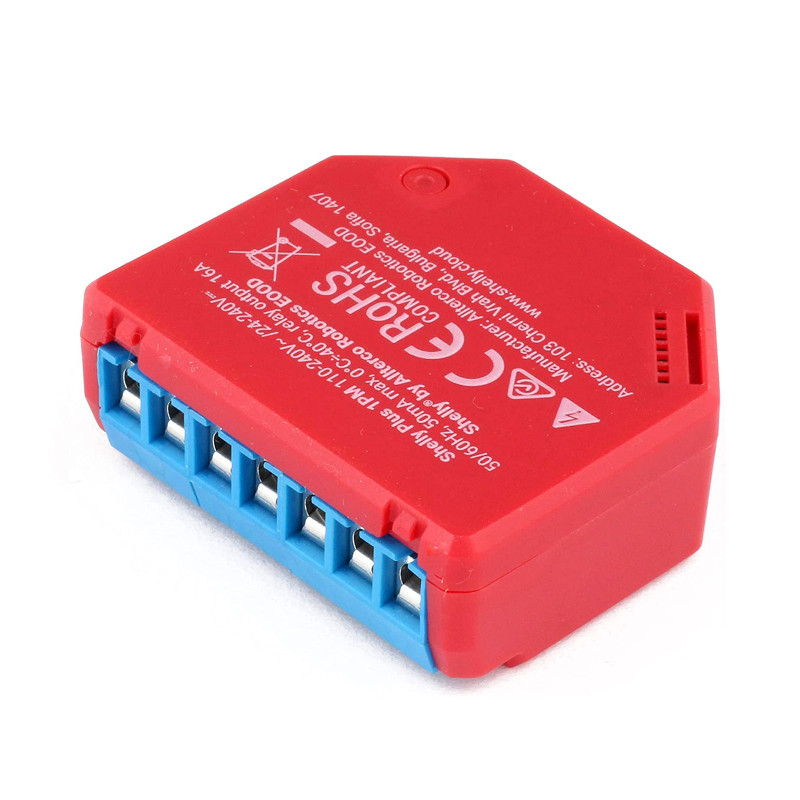

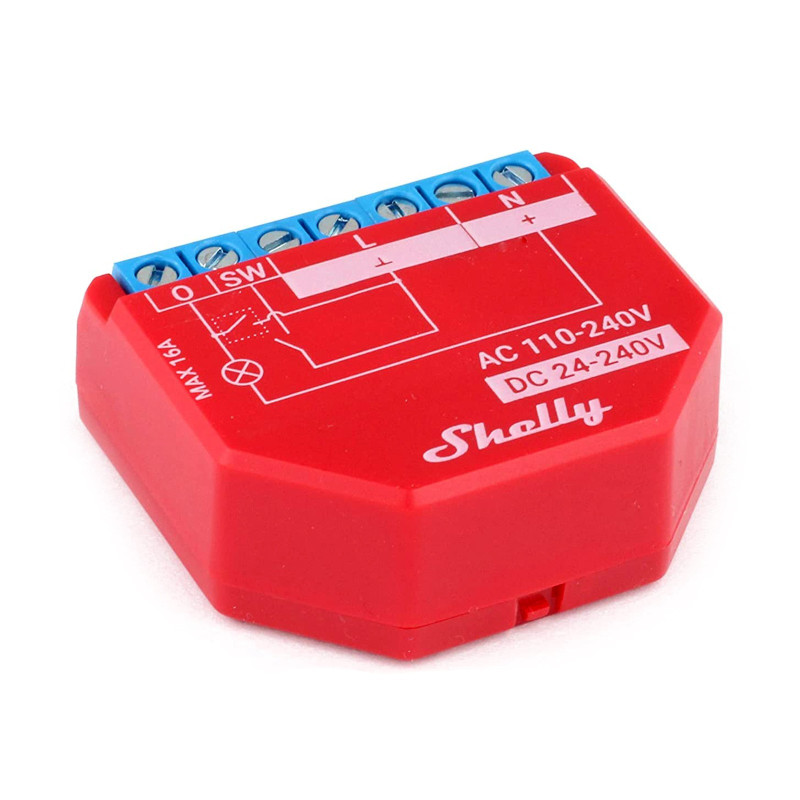

Shelly Plus 1PM WiFi Bluetooth 16A Induction Relay

Shelly Plus 1PM is a new generation of efficient Wi-Fi switch for your automation solution with newly added Bluetooth technology.

• Connects to your Wi-Fi network. No HUB required!
• Bluetooth - Add devices quickly and easily using a Bluetooth connection and the Shelly Cloud app.
• Power measurement and a wide range of supported voltages
• Overload, voltage and temperature protection
• Fast ESP32 processor
• Improved API

Shelly Plus 1PM

Control of new generation devices with precise power measurement

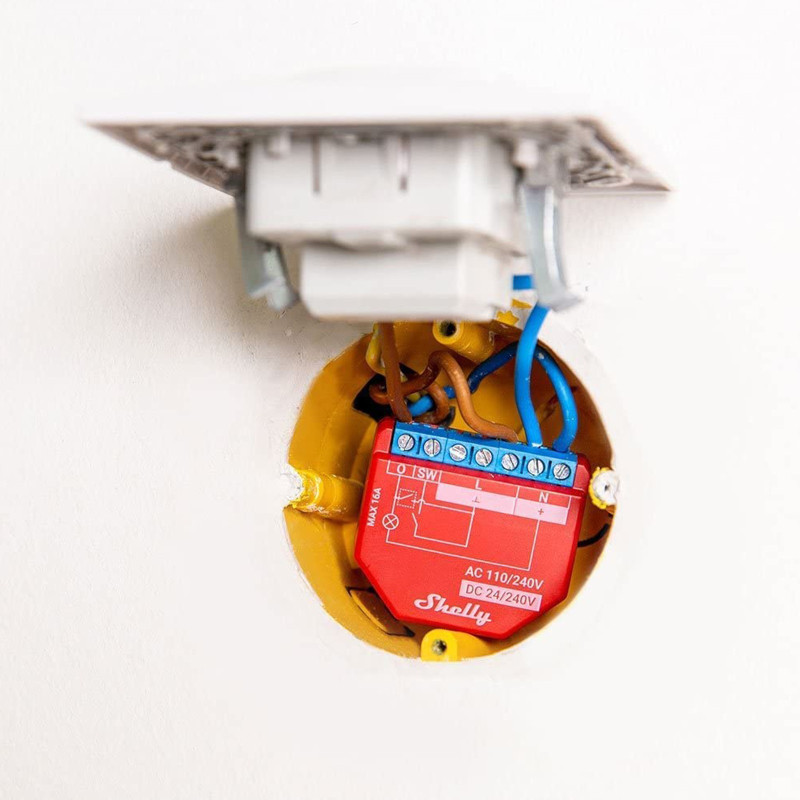

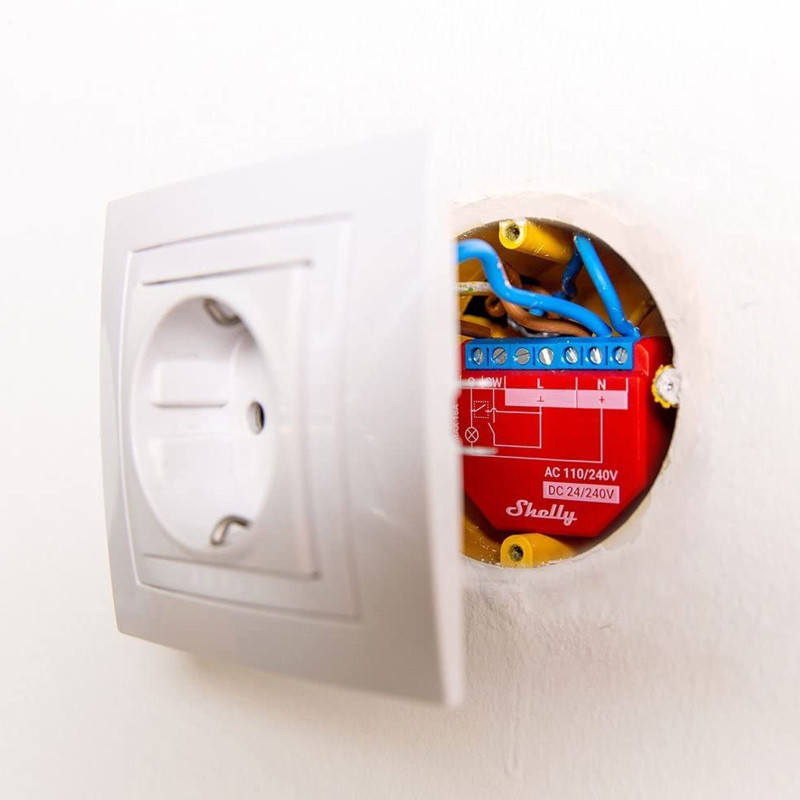

From lighting automation to electrical device control, Shelly Plus 1PM provides precise energy metering and free cloud data storage. Small enough to fit behind any wall switch or outlet, the Shelly 1PM is upgradeable and can be installed in less than 10 minutes.

Functions

• Wi-Fi Support - Connect Shelly Plus 1PM to a Wi-Fi network. HUB is not required
• Bluetooth - quick and easy device adding via Bluetooth, using the Shelly Cloud app
• Wide range of supported voltages - Shelly Plus 1PM can be supplied with 110-240 VAC and 24-240 VDC
• Power metering with data storage - Shelly Plus 1PM provides precise monitoring of energy consumption
• Extremely fast processor - immediate command execution and notification
• Increased safety - Increased protection against over temperature with software thresholds for checking and preventing failures
• Enhanced Security - Supports MQTT and WSS, TLS and Custom Certificates for a wide range of applications
• Improved API - Wide range of cloud connections and on-premises integrations with significantly lower integration costs

Endless utility applications

• Track your energy consumption and save money
• Automate any electrical device and control it remotely
• Return to the cozy home - control and monitor the heaters
• Set up smart scenes and be prepared for anything
• It does not require a hub

Shelly Plus 1PM can be controlled directly and without a hub using a smartphone with the Shelly Cloud App. Manage and control your home or facility, set scenes, schedules and adjust settings wherever you are thanks to access to the cloud or only on the local network!

High compatibility

Use your preferred voice assistant to control the Shelly Plus 1PM system. Shelly Plus 1PM is compatible with the most popular voice assistants such as Amazon Alexa, Google Assistant, Yandex Alice.

Platforms Supported

Use devices with one local or centralized server - you can fully isolate them from the public Internet network. Shelly Plus 1PM is compatible with Amazon Alexa, Home Assistant, Smart Things, and other third-party home automation platforms. Shelly Plus devices can also be grouped with all Shelly devices as well as with other smart home devices in the home network.

Technical data:

• AC power supply: 110-230V ± 10%, 50 / 60Hz
• DC power supply: 24 - 240V
• Potential-free contacts: No.
• Roller shutter mode: No.
• Device temperature protection: Yes
• Overload protection: Yes
• Power measurement: Yes
• Operation without a neutral line: No.
• Channels: 1 channel
• Maximum load: 16A
• Working temperature: 0 ° C to + 40 ° C
• Device power consumption: <1 W
• Intelligent on / off: Yes
• Local and remote control: Yes
• Sunrise / sunset: Yes
• Weekly schedule: Yes
• UL Listed option: No.
• Wireless: Yes
• Wi-Fi Protocol: 802.11 b / g / n
• Wi-Fi radio frequency: 2412 - 2484 MHz
• Wi-Fi radio signal strength: 1mW
• Wi-Fi range: up to 50 m outdoors and up to 30 m indoors (depending on building materials)
• Bluetooth: Yes

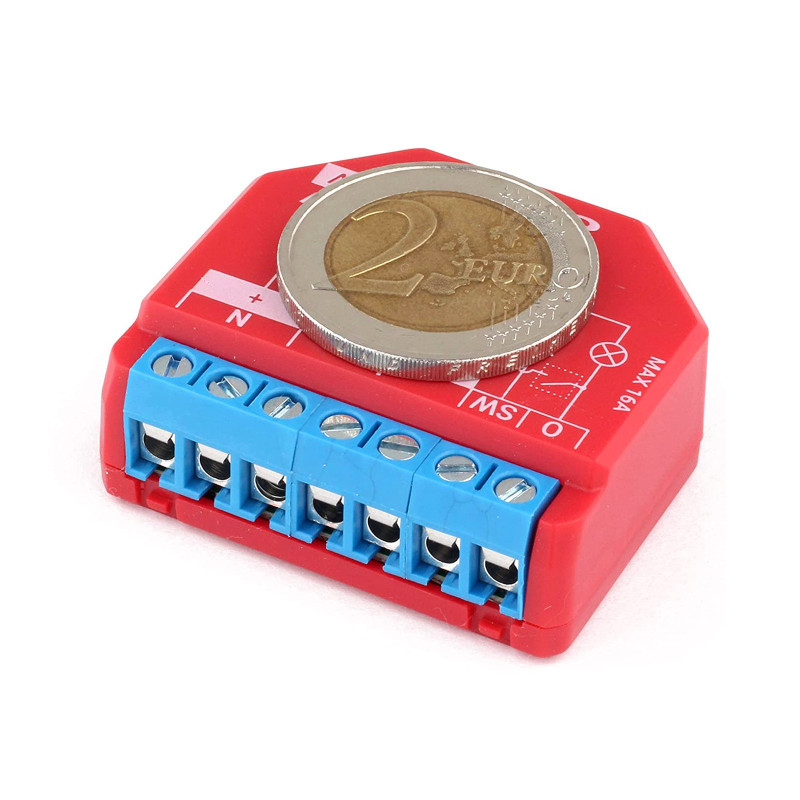

• Dimensions: 41 x 36 x 15 mm
