Shelly Plus 1 WiFi Bluetooth 16A Induction Relay

Shelly Plus 1 is the next generation intelligent switch for your automation solution.

• Wi-Fi Support - Connects to your Wi-Fi network. No HUB required!
• Bluetooth - Add devices quickly and easily using a Bluetooth connection and the Shelly Cloud app.
• Low voltage support and dry contacts
• Overload and over temperature protection
• Fast processor - ESP32
• Improved API

Shelly Plus 1

Even better home automation experience and better lighting control!

Automation of lights, garage door, irrigation system, bathroom fan, any old electrical appliances ... think it up! Shelly Plus 1 has many applications that give you better control over your smart home. Small enough to fit behind any wall switch or wall socket, the Shelly Plus 1 is upgradeable and can be installed in less than 10 minutes.

The most important information

• Wi-Fi Support - Shelly Plus 1 can be connected to a Wi-Fi network. HUB is not required
• Bluetooth - Add devices quickly and easily using a Bluetooth connection and the Shelly Cloud app

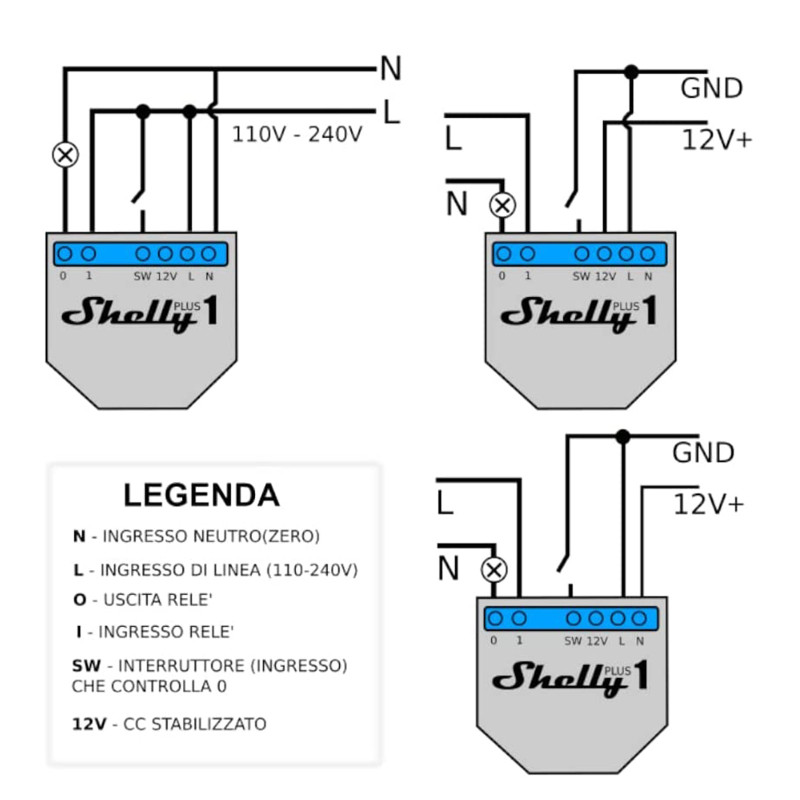

• Low voltage support - Shelly Plus 1 can be powered from 110-240 VAC, 24-240 VDC or 12VDC
• Voltage-free contacts - the possibility of using a wide range of output voltage levels. Low voltage support
• Extremely fast ESP32 processor - immediate command execution and notification.
• Increased safety - Increased protection against over temperature with software thresholds for checking and preventing failures
• Enhanced Security - Supports MQTT and WSS, TLS and Custom Certificates for a wide range of applications
• Improved API - Wide range of cloud connections and on-premises integrations with significantly lower integration costs

Endless uses

• Automate your lighting and make it work according to your schedule
• Set up smart scenes and be prepared for anything
• Easily control your garage door at home no matter where you are!
• Automate your irrigation system based on the weather
• Make every old electrical appliance smart

It does not require a hub

Shelly Plus 1 can be controlled directly and without a hub using a smartphone with the Shelly Cloud App. Manage and control your home or facility, set scenes, schedules and adjust settings wherever you are thanks to access to the cloud or only on the local network!

High compatibility

Use your preferred voice assistant to control the Shelly Plus 1 system. Shelly Plus 1 is compatible with the most popular voice assistants such as Amazon Alexa, Google Assistant, Yandex Alice.

Platforms Supported

Use devices with one local or centralized server - you can completely isolate them from the public Internet network. Shelly Plus 1 is compatible with Amazon Alexa, Home Assistant, Smart Things, and other home automation platforms. Shelly Plus devices can also be grouped with all Shelly devices as well as with other smart home devices in the home network.

Technical data:

• AC power supply: 110-230V ± 10%, 50 / 60Hz
• DC power supply: 24 - 240V / 12V stabilized
• Potential-free contacts: Yes
• Roller shutter mode: No.
• Device temperature protection: Yes
• Overload protection: Yes
• Power Measurement: No.
• Operation without a neutral line: No.
• Channels: 1 channel
• Maximum load: 16A
• Working temperature: 0 ° C to + 40 ° C
• Device power consumption: <1 W
• Intelligent on / off: Yes
• Local and remote control: Yes
• Sunrise / sunset: Yes
• Weekly schedule: Yes
• UL Listed option: No.
• Wireless: Yes
• Wi-Fi Protocol: 802.11 b / g / n
• Wi-Fi radio frequency: 2412 - 2484 MHz
• Wi-Fi radio signal strength: 1mW
• Wi-Fi range: up to 50 m outdoors and up to 30 m indoors (depending on building materials)
• Bluetooth: Yes
• Size: 41 x 36 x 15 mm
