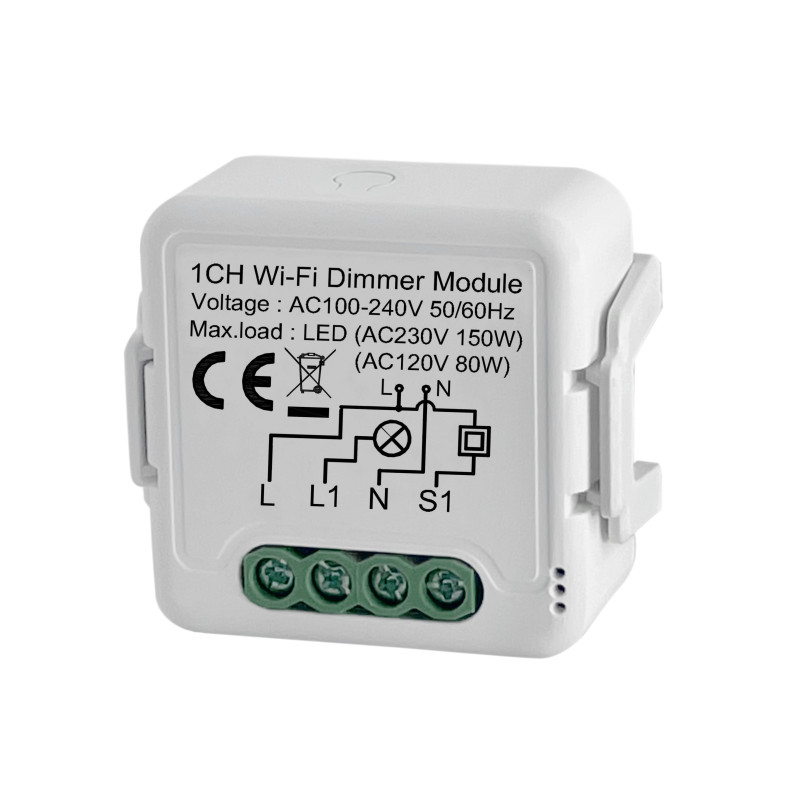

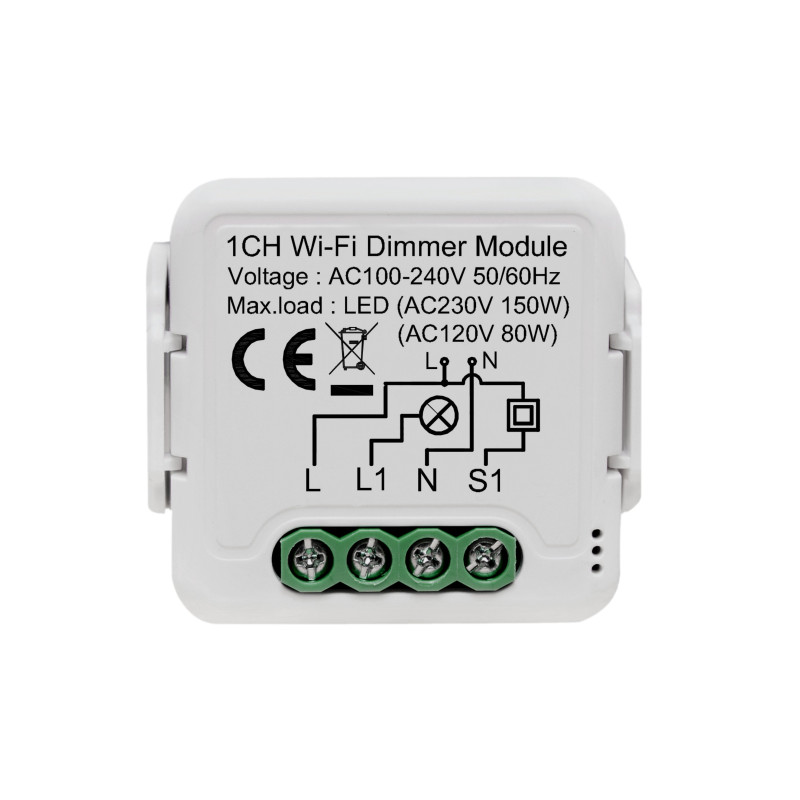

MINI WiFi module light dimmer for the Tuya wall box

The smallest miniature flush-mounted module on the market, intelligent light switch with dimming function , DIN rail controller - Tuya or Smart Life application

Key Features

• Miniature dimensions, easily fits in the box under the light switch
• Very easy to assemble
• Control from the application on the phone from anywhere in the world
• Integration and automation with other Tuya devices
• Cooperation with a traditional light switch
• Can be mounted in a flush-mounted box or on a DIN rail
• Does not require a LAN cable (data transmission via WiFi)
• Schedule - turning on and off at certain times of the day, e.g. at sunrise, randomly,
• Time function - turning on the device / lighting for a specified period of time
• Countdown function - turning on the device for a specified number of minutes
• Cooperation with bistable and monostable switches

You can install the Tuya smart relay in a box or on any electrical cable. It is safe and has CE and ROHS certification.

Technical Specifications

• Input voltage: AC100-240V 50 / 60Hz
• Max current: LED 250W / 10A per channel
• Maximum power: 2400W
• Module dimensions: 18 x 39 x 39 mm
• Dimensions with handle: 22 x 39 x 43 mm
• Ambient temperature: -10 ° C to 40 ° C
• Communication protocol: WiFi
• Electrical installation: N + L

Included

• Relay WiFi module
• Mounting bracket
• Instruction

Tuya and Smart Life application

The relay works with the Tuya or Smart Life application available on phones with iOS and Android systems. TUYA software designed primarily for home automation, which combines thousands of products created by brands from around the world. Tuya supports all the most popular communication protocols such as: WiFi, Zigbee, Bluetooth. An additional advantage of the equipment integrated with Tuya is a huge community that is growing every day and is willing to provide support.

Integrated with the Tuya application gives enormous possibilities of automation and creating scenes with other devices.

By choosing equipment integrated with Tuya, you gain access to the highest-class intelligent devices and accessories from each category, which you can freely combine and configure. The whole is controlled by an intuitive and very easy to use Tuya application or similar Smart Life, thanks to which you can manage your smart home, building or room from anywhere in the world.
