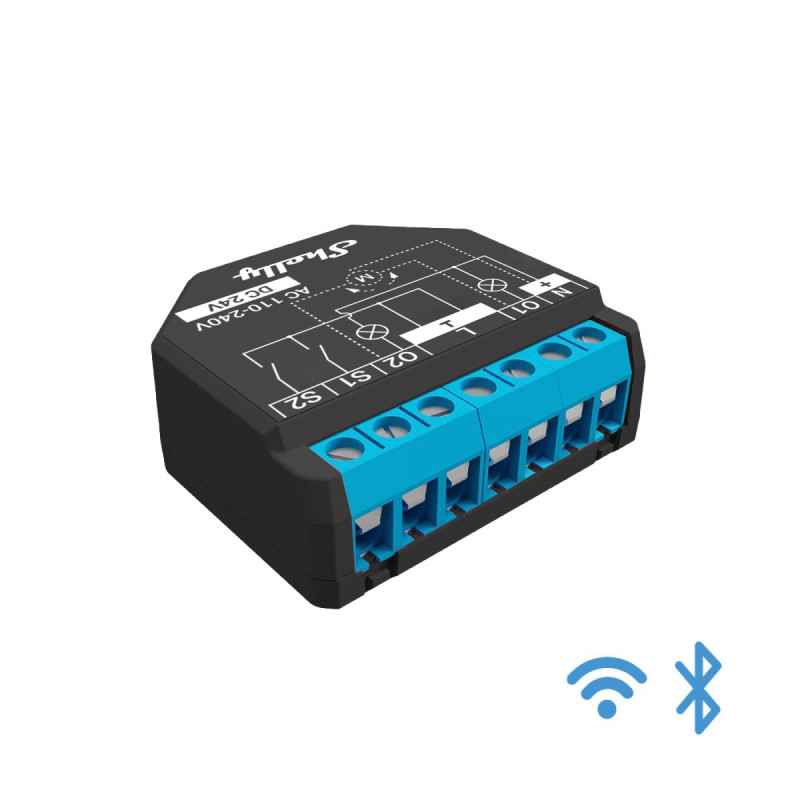

Shelly Plus 2PM WiFi Bluetooth 16A Induction Relay

Control of new generation devices with precise power measurement

Shelly Plus 2PM is a single-phase, two-channel smart relay that supports up to 10A per channel and 16A total current (18A peak). It is equipped with two power meters for each channel and the function of protection against excessive power consumption, which allows to reduce energy consumption. Shutter control allows you to control and monitor shutters, shutters, curtains, gates or other two-way AC motors.

Functionality

• Wi-Fi Support - Connect Shelly Plus 2PM to your Wi-Fi network. HUB is not required
• Bluetooth - quick and easy device adding via Bluetooth, using the Shelly Cloud app
• Wide range of supported voltages - Shelly Plus 2PM can be powered by 110-240 VAC and 24 VDC. It supports up to 10A per channel and 16A in total.
• Lid (Roller) Control - Control bi-directional AC motors and set the desired position
• Power metering with data storage - Shelly Plus 2PM provides precise monitoring of energy consumption
• Extremely fast processor - for immediate command execution and notification
• Increased safety - Improved over temperature protection with program thresholds for checking and preventing failures
• Enhanced Security - Supports MQTT and WSS, TLS, and custom certificates for a wide range of use cases
• Improved API - Wide range of cloud connections and on-premises integrations with significantly lower integration costs

Endless uses

• Track your energy consumption and save money
• Automation of any electrical devices and remote control of them
• Return to the cozy home - control and monitor the heaters
• Set up smart scenes and be prepared for anything
• It does not require a hub
• Shelly Plus 2PM can be controlled directly and without a hub via a smartphone with the Shelly Cloud App. Manage and control your home or facility, set scenes, schedules and adjust settings wherever you are thanks to access to the cloud or only on the local network!
• High compatibility
• Use your preferred voice assistant to control Shelly Plus 2PM. Shelly Plus 2PM is compatible with most popular voice assistants such as Amazon Alexa, Google Assistant, Yandex Alice.

Platforms Supported

Use devices with one local or centralized server - you can fully isolate them from the public Internet network. Shelly Plus 1PM is compatible with Amazon Alexa, Home Assistant, Smart Things, and other third-party home automation platforms. Shelly Plus devices can also be grouped with all Shelly devices as well as other smart home devices in the home network.

Technical data

• AC power supply: 110-240V ± 10%, 50 / 60Hz
• DC power supply: 24 V ± 10%,
• Channels: 2 channels
• Current per channel: 10A
• Total device current: 16A (18A peak)
• Switching voltage: 240 VAC / 30 VDC
• Dry contacts: No.
• Shield control (rollers): Yes, with position control - roller shutters, shutters, awnings, curtains, gates, shutters, sliding doors, garage doors, two-way AC motors.
• Overload protection: Yes
• Power measurement: Yes
• Over temperature protection: Yes
• Operation without a neutral line: No.
• HTTP / HTTPS Webhooks: Yes
• Custom scripts (mJs): Yes
• Working temperature: 0 to + 40 ° C
• Device power consumption: <1.4 W
• Local and remote control: Yes
• Sunrise / sunset: Yes
• Weekly schedule: Yes
• UL Listed Option: No.
• Wireless: 802.11 b / g / n
• Wi-Fi radio frequency: 2400 - 2500 MHz
• Wi-Fi radio signal strength: 1mW
• Wi-Fi range: up to 50 m outdoors and up to 30 m indoors (depending on building materials)
• Size: 42 x 38 x 17 mm
